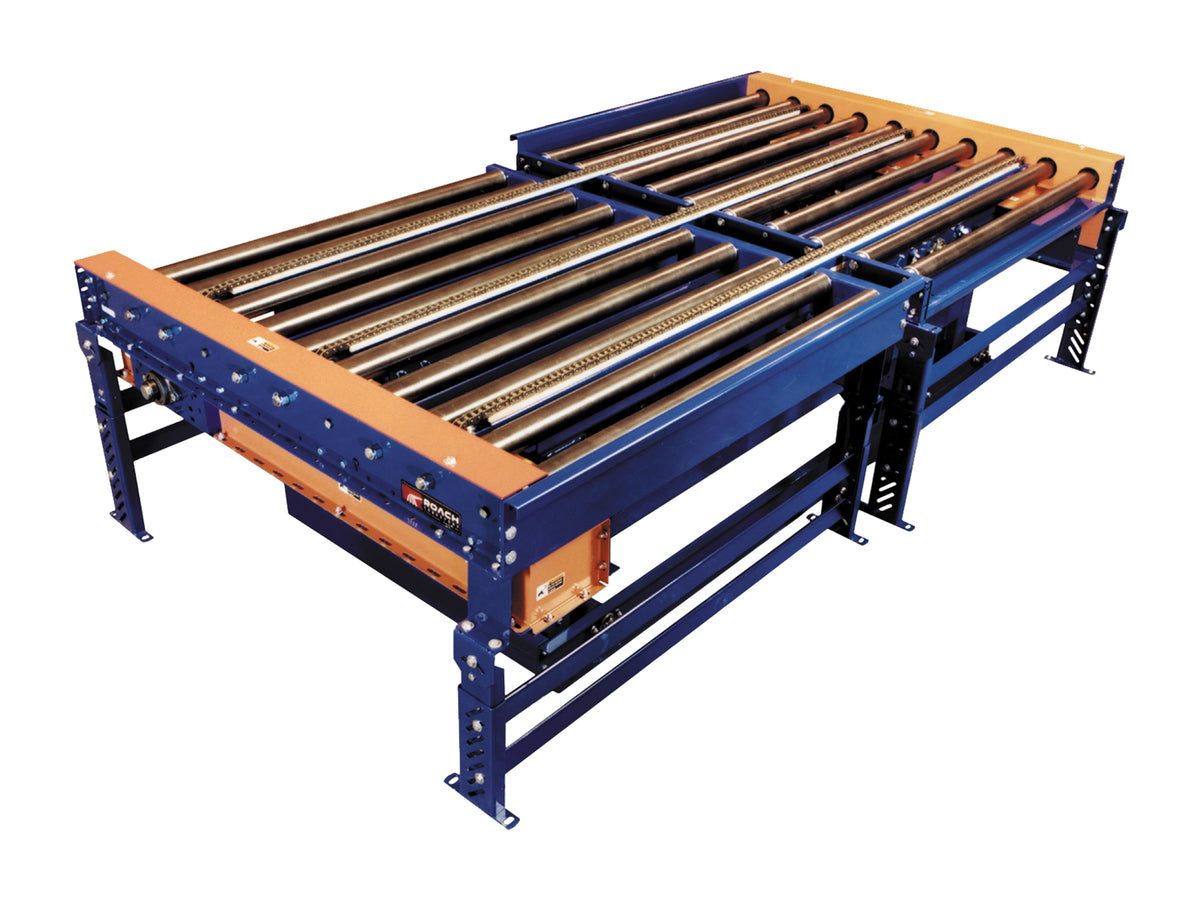

90° 3-Strand Chain Transfer, No. 60 or No. 80 Chain

The CT360 90-degree 3-strand chain transfer uses three parallel strands of flat side bar chain to move heavy unit loads at right angles between conveyor runs. Chain transfers are chosen where rigid pallets, crates or other heavy packaged goods have to be redirected in tight layouts that will not accommodate large radius turns. Each chain strand is supported by a formed transfer arm and driven by a gear motor, supplying consistent motion for heavy-duty handling.

Specifications

Published specifications cover the transfer arm, transfer chain, standard lengths, chain centers, chain take-up, end drive, lift, bearings, chain speed, motor drive, capacity and air controls. Full specifications for your application are available on request.
