Catalog 8 products

Retail Wall Grid & Slatwall

Wall-mounted wire grid storage: Smart Grid and Store Grid wire grids, wall tracks, uprights, shelf cantilevers, baskets and accessory kits.

Wall Grid Storage

Wire Grid Storage That Mounts to the Wall

This page holds the Smart Grid and Store Grid systems: wire grid panels that mount to a wall and carry baskets, hooks, shelves and bins up off the floor and the work surface. The two systems are listed side by side and share the same sizes across every piece here, so the parts list for a wall reads the same whichever system you choose.

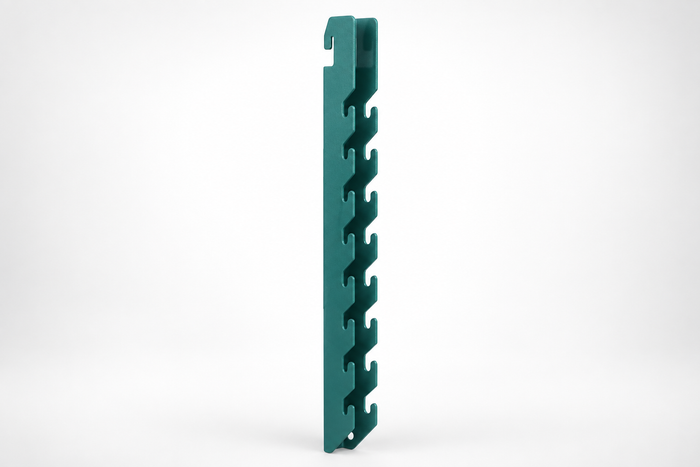

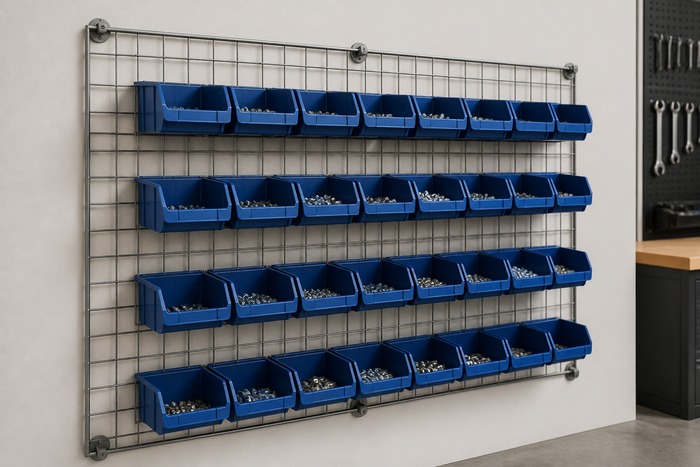

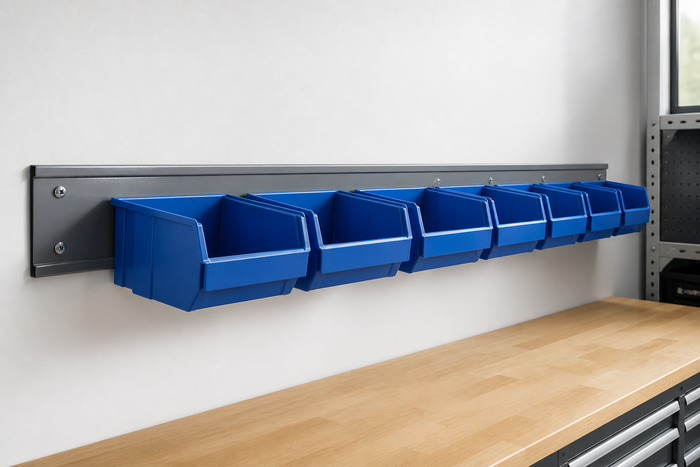

A wall starts with wall tracks or wall mount uprights. Wall tracks are 12 gauge cold rolled steel in 40, 56 and 72 in lengths, with obround mounting holes at 8 in increments, stop fasteners for the ends and joiner plates for connecting runs; mounting hardware is not included. Uprights are 12 gauge cold rolled steel in 16, 31 and 44-1/2 in lengths, slotted every 1-1/2 in so grids and shelf supports clip in. Wire grids are 1/4 in cold rolled steel wire with 3 x 3 in openings, in nine sizes from 18 x 30 in to 33 x 54 in.

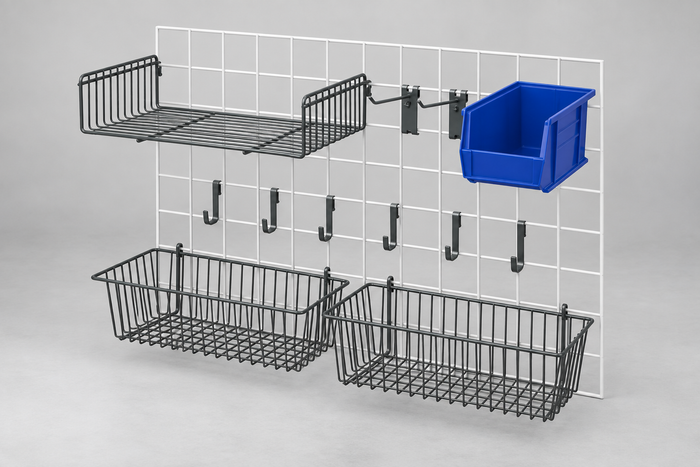

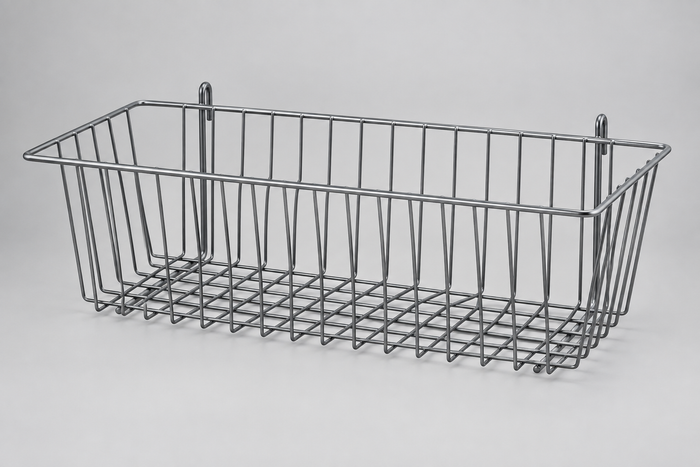

The rest is what hangs on the grid: single and double cantilevers for 14, 18, 21 and 24 in epoxy shelves, baskets in three sizes, and Accessory Packs 1 and 2, one-carton kits sized for a minimum 18 x 36 in grid space. The Light-Duty Task Station is a complete kit for a 24 x 48 or 30 x 36 in grid space. Include your wall dimensions and the system you want when you request a quote.

Not sure which system fits your operation?

Send your loads, footprint, ceiling height, and throughput goals. A specialist returns a layout with capacities, a drawing, and lead times.

Key Features

  • Smart Grid and Store Grid systems
  • Wire grids in nine sizes, 18 x 30 in to 33 x 54 in
  • 1/4 in cold rolled steel wire with 3 x 3 in openings
  • 12 gauge steel wall tracks and slotted wall mount uprights
  • Single and double cantilevers for 14 to 24 in shelves
  • Baskets, accessory packs and a complete task station kit

Ready to Get a Quote?

Pricing, a layout, or a straight answer from our team. Pick the fastest path.

Get a Custom Quote

Bulk orders, custom configurations, project pricing. We'll send a written quote within one business day.

Request a Quote
