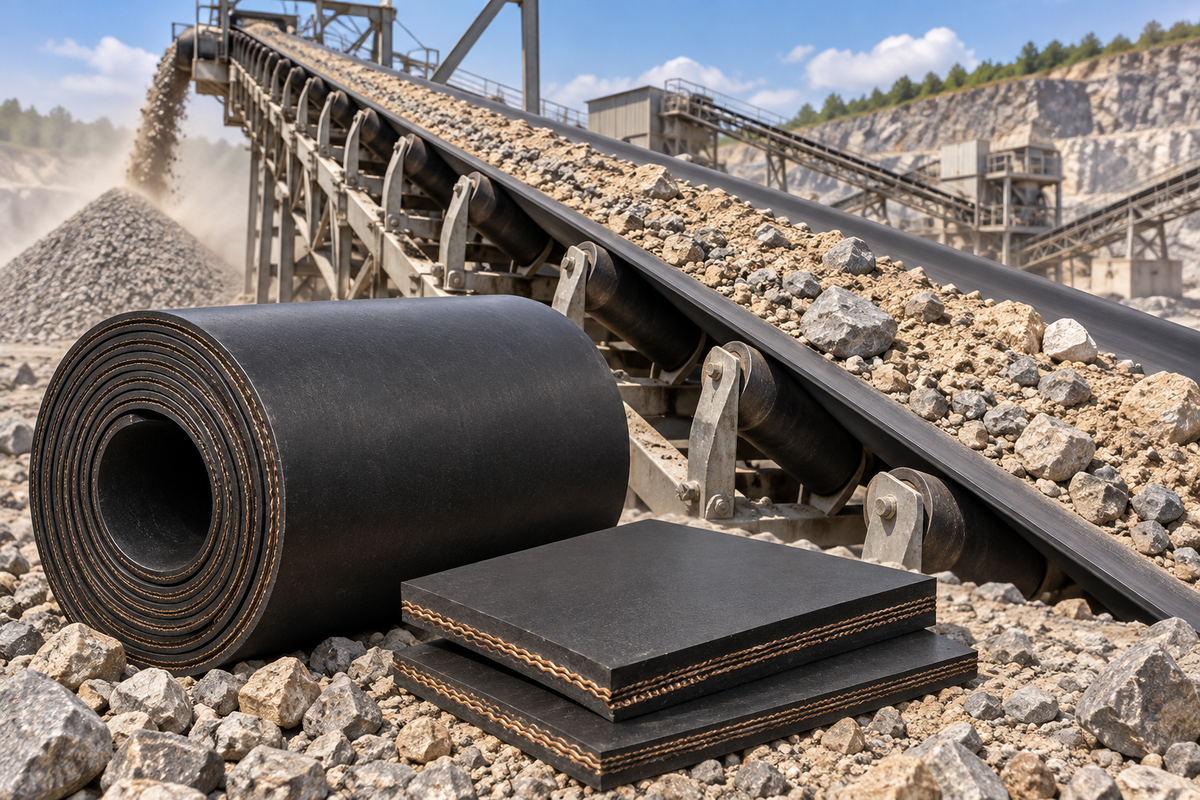

Smooth Top and Bottom General-Purpose Conveyor Belt (5-2731 / 5-3731)
Configure this unit
Belt Construction
Best in class pricing: request a quote for capacities, lead times, and freight on your exact configuration.
5-3731 is a 3-ply, 330 PIW general-purpose conveyor belt with smooth top and bottom covers and a high-strength synthetic carcass. The 3/16" by 1/16" STD cover package is built for sand, gravel, and rock handling under heavy abrasion.
Features
- 3-ply polyester/nylon carcass rated at 330 PIW working tension
- 3/16" smooth top cover, 1/16" smooth bottom cover
- Long-wear, mildew-resistant construction
- Less than 4% elongation under load
- Troughable construction, 65a hardness
- Stocked at 96" width
- Working temperature -20 to 250 degrees F
- Minimum pulley diameter 18" at over 80% tension, 12" for tails and snubs
Applications
- Sand and gravel conveying
- Rock and aggregate handling
- Heavy industrial bulk material transfer
- General-purpose abrasive service
Construction & Standards
Polyester/nylon carcass with smooth covers. Designed for mildew resistance and minimal stretch in standard heavy-duty service.
| Category | Conveyor Belting |
|---|---|
| Lead time | Quoted per order, sourced through our distributor network, confirmed at quote |
| Pricing | Quote-based: request capacities and freight for your configuration |
