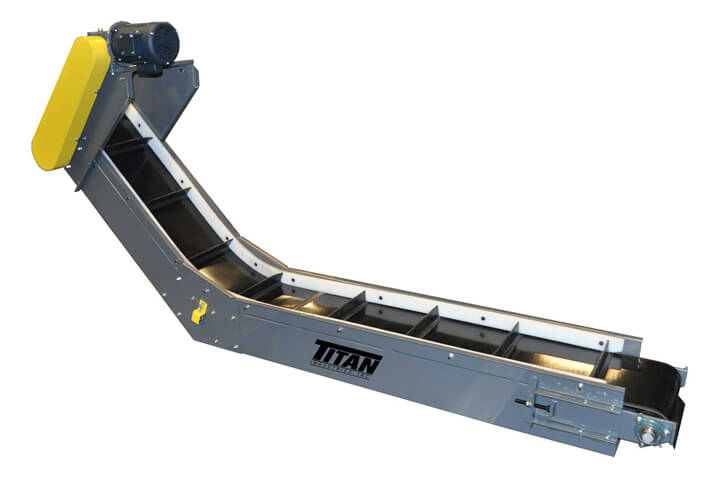

Cleated Belt Incline Conveyor
Best in class pricing: request a quote for capacities, lead times, and freight on your exact configuration.
An economical parts conveyor that carries parts up an incline. Cleat height and spacing are set to suit the application, and belts are available in PVC, neoprene, white food handling or other types to your specification. Floor supports are standard and portable undercarriages can be supplied.
Features
- Belt widths from 4 in to 48 in
- Cleat heights and spacing to suit the part
- Sidewall belt version for loose material
- Steel belt parts feeder version
- Chain edge belt version for solid waste, in widths from 12 in to 72 in
Specifications
- Belt widths: 4 in to 48 in
- Standard belt: 2 ply black neoprene or black PVC, 1-1/2 in cleats on 12 in centers
- Drive pulley: 4 in dia. crown face, rubber lagged
- Frame: 6-1/2 in or 8-5/8 in deep formed 12 ga.
- Supports: Floor supports standard, portable undercarriage optional
Request a quote with part size and weight, belt width, incline angle and discharge height, and whether you need a portable base.
| Category | Powered Conveyors |
|---|---|
| Lead time | Quoted per order, sourced through our distributor network, confirmed at quote |
| Pricing | Quote-based: request capacities and freight for your configuration |
