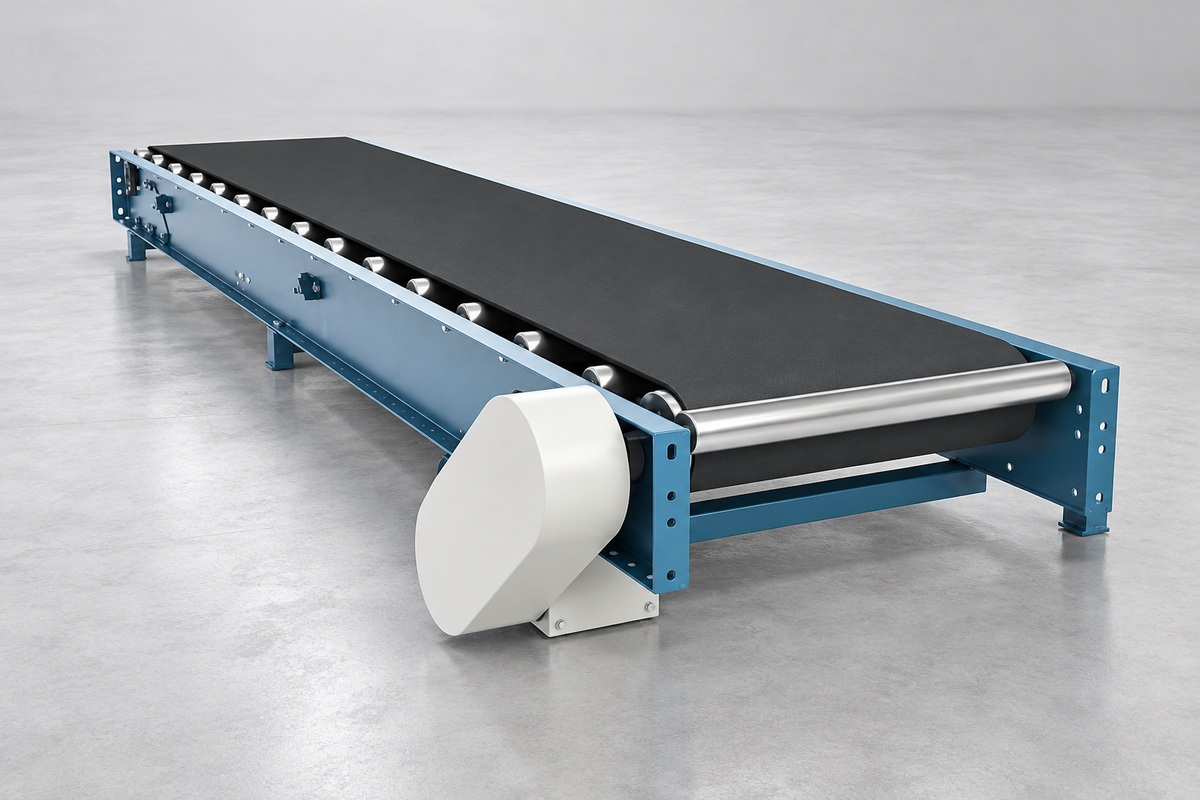

Slider Bed Belt Conveyor

This slider bed belt conveyor moves cartons, totes and packages on a continuous belt, for handling heavier than light-duty work but short of full heavy-duty demands. Custom sizes and configurations are available.

Features

• PVC-120 black belting
• Drive pulley 4 in dia. with 1-3/16 in shaft, or 8 in dia. with 1-7/16 in shaft, crowned and fully lagged
• Tail pulley 4 in dia., crowned, with 1-3/16 in shaft
• End drive for one-direction operation; optional center drive for reversible use
• Screw type take-up at the tail pulley with 12 in belt take-up
• Precision heavy duty ball bearing units with cast iron housings
• Safety pop-out rollers on both ends
• Electrical controls and floor supports optional

Specifications

• Frame style: medium duty or box style
• Bed: 7 in x 12 gauge channel frame with 14 gauge slider bed (9 to 27 in BF); 12 gauge bed at 33 in BF and above with bed pan braces
• Belt widths: 18, 24 and 36 in (21, 27 and 39 in BF)
• Lengths: 10 ft and 20 ft standard
• Belt speed: 60 FPM constant
• Motor: 1/3 HP, 230/460/3, 60 cycle, ODP right angle gear motor
• Return rollers: 1.9 in dia. x 16 gauge steel, model 196S, adjustable

Conveyor supports are sold separately; choose supports that match the BF width of the conveyors you order.
