Lift-Out Machine Guarding

Lift-out machine guarding for welders, stretch wrappers and other automated equipment. Panels lift out of the upright posts for maintenance access without taking the system apart.

Request a Quote Talk to a Specialist

Why It Matters

Engineered for the job

Lift-Off Panels

These panels are designed to lift off from the upright posts, allowing quick and easy access to the guarded equipment for maintenance, inspections, or service: without disassembling the entire guarding system.

Safety To The Max

This system gives machine and robot cells a fixed physical perimeter, with lift-out panels for maintenance access.

Interlocks

The system's doors can be equipped with a variety of safety switches or interlocks to control access during machine operation.

Not sure which system fits your operation?

Send your loads, footprint, ceiling height, and throughput goals. A specialist returns a layout with capacities, a drawing, and lead times.

Request a Layout 1-800-445-4082

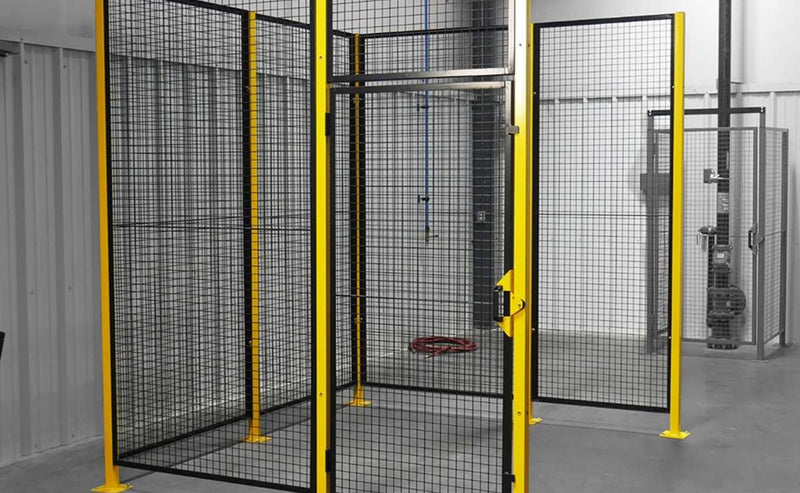

Security and Safety Come First

Security and Safety Come First

Each lift-out panel is equipped with a tool-removable bolt installed on the inside of the guarding system. This bolt prevents removal of the panel during machine or robot operation, ensuring secure perimeter protection. Safety switches or interlocks can be integrated into any of the system's doors. When disengaged, the interlock triggers an immediate shutdown of the machine or robot. Once the system is powered down, the bolt can be removed and the panel lifted off from the outside for full access. The lift-out design gives full access for service without dismantling the guarding.

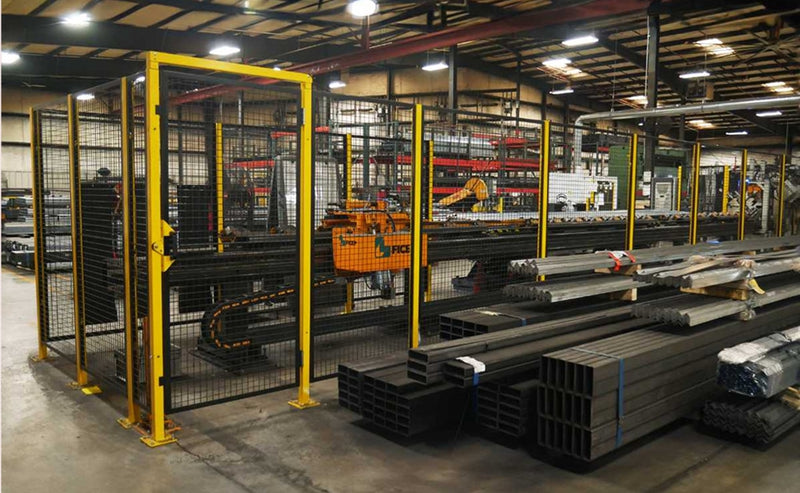

Standard Features & Options Are Available

Standard Features & Options Are Available

This lift-out machine guarding system is fully compatible with standard features from the other guarding systems in this line, allowing seamless integration. Both hinged and sliding doors are available and come self-latching for secure closure. Doors can be equipped with a Fortress AmStop 24V interlock or another interlock of your choice for enhanced safety control. Standard panel heights include 6′ and 8′, with panels finished in black powder coat and posts finished in high-visibility yellow powder coat for clear perimeter identification.

Lift-Out Machine Guarding

Key Features

  • Standard panel sizes: 6′-2 13/16″ and 8′-1 1/4″ high, widths from 6″ to 5′
  • Panels mount between 6′-6 3/4″ and 8′-5 1/4″ high posts (4″ sweep)
  • Custom panel sizes and special heights available
  • Fully framed panel provides unmatched strength and stability
  • Available door options: hinged and sliding
  • Lift-out design enables installation up to 50% faster than conventional systems
  • One-piece hardware that removes only with a special tool
  • All necessary hardware, including anchors, is included
  • Stock finish: black powder coat for panels, yellow powder coat for posts
  • Optional materials: woven or welded mesh, expanded metal, sheet metal, or clear polycarbonate
  • Standard accessories include lockout plate and pull handle
  • Safety interlocks with mounting plates available for enhanced access control

Frequently Asked Questions

This lift-out guarding system from Deluxe Systems is an ideal solution for protecting welding machines, stretch wrappers, and other automated equipment that requires both safety and accessibility. Unique among guarding solutions, its panels lift out from the upright posts, providing unobstructed access for maintenance or service without dismantling the system.
Send your dimensions, capacity needs, and timeline through our quote form. Our team responds within one business day with options and pricing. Stocked configurations typically ship in 2-3 weeks; engineered systems run 4-8 weeks depending on complexity.
