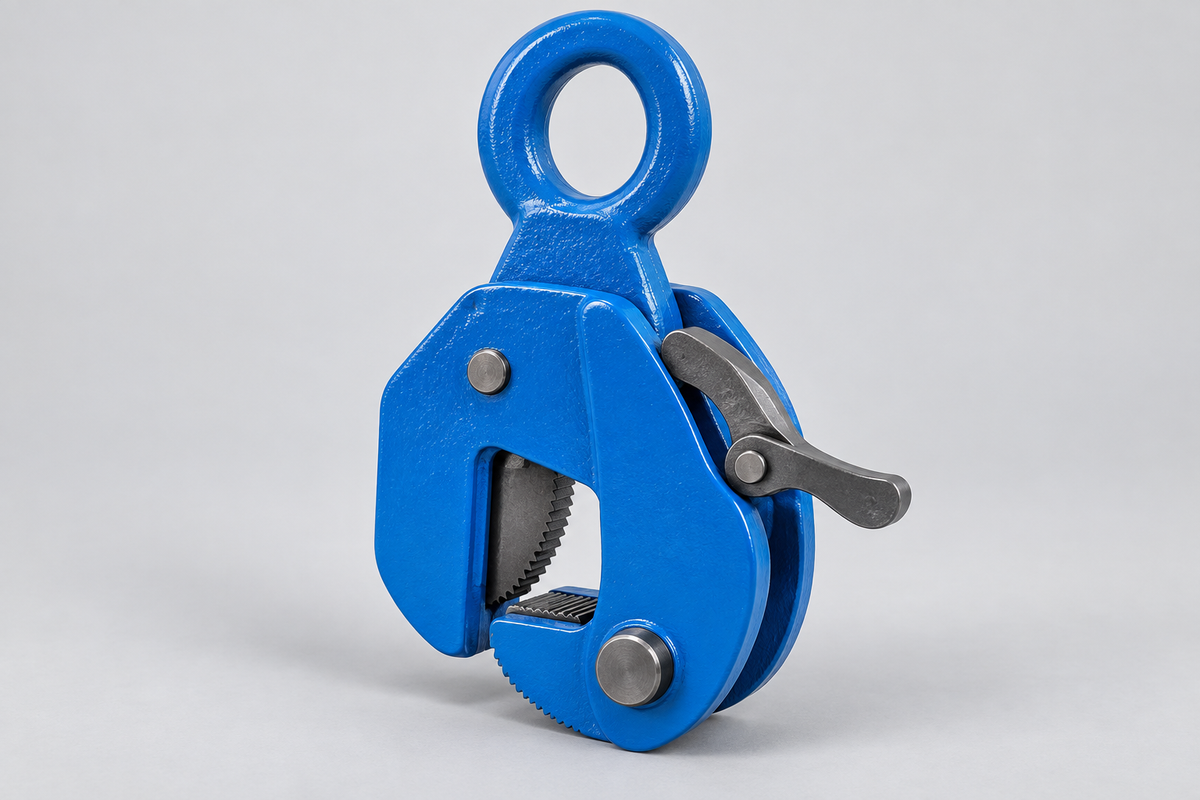

Positive Locking Plate Clamps
Best in class pricing: request a quote for capacities, lead times, and freight on your exact configuration.
These vertical plate lifting clamps handle steel plate in fabrication shops, steel service centers and warehouses, lifting and positioning one plate at a time with an overhead hoist or crane. A positive locking design grips the material until the operator pulls the release ring, helping prevent accidental slippage. The forged head and gear use hardened tool steel with serrated grippers, powder-coated for durability and built to ASME B30.20. Working load limits run from 2,000 to 6,000 lbs., with plate thickness up to 1-9/16 inches depending on the clamp. Use on clean steel plate up to 30 RC / 300 HB hardness; not for stainless steel or aluminum, and do not lift loads below 20% of rated capacity.
Specifications
Published specifications cover model number, description, attributes and net weight for each clamp. Full specifications are available on request.
| Category | Clamps & Tongs |
|---|---|
| Lead time | Quoted per order, sourced through our distributor network, confirmed at quote |
| Pricing | Quote-based: request capacities and freight for your configuration |
