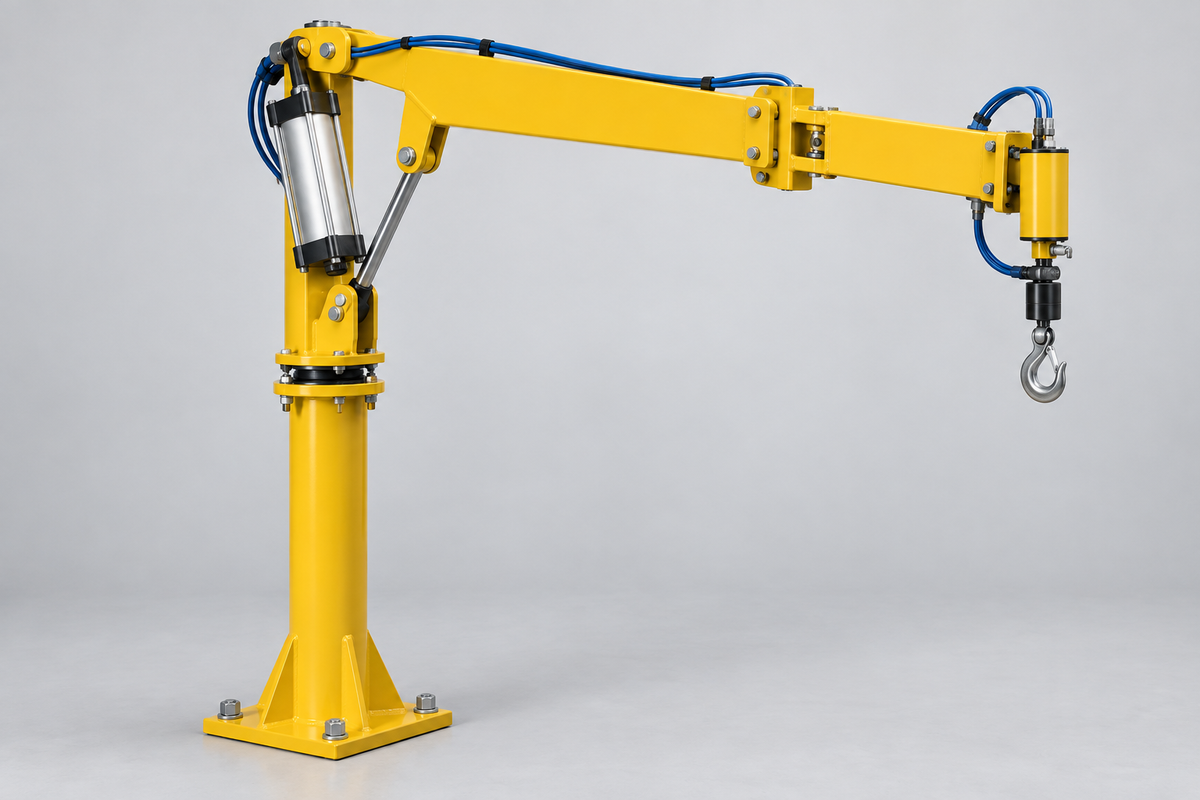

Air Balance Jib Lifters, 250 lb Capacity Pneumatic Arm

Air Balance Jib Lifters use pneumatic balance so an operator can move heavy material with minimal effort across a full three-dimensional work area. Running on 100 psi air, a push-button hand control operates the pneumatic cylinder that raises and lowers the cable, and the arm rotates a full 360 degrees. Steel construction with a yellow finish keeps the unit visible on the floor. Every model shares a 250 lb. uniform capacity, with stroke lengths of about 47" to 57" and maximum arm lengths of 78" to 93" depending on configuration. Floor-mounted, ceiling-mounted and portable mounting options are available.

Specifications

Published specifications cover model number, description, attributes and net weight. The page has no option selectors, so full specifications are available on request.
