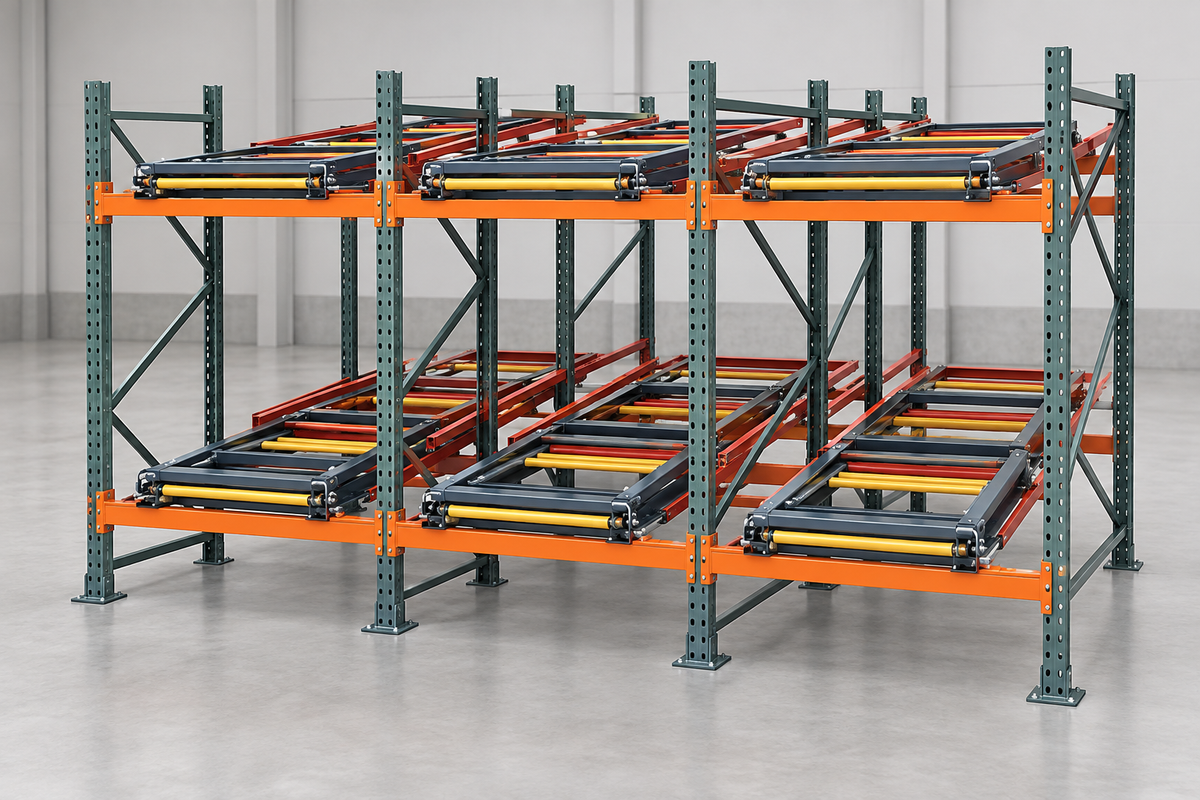

Pushback Rack for LIFO Pallet Storage

This pushback rack is a high-density pallet storage system for warehouses running Last-In, First-Out (LIFO) inventory. It stores pallets 2 to 5 deep and, unlike drive-in systems, gives independent access to every lane.

Pallets are placed by forklift on nested carts that ride on inclined rails. Each pallet is pushed back by the loading of the next one, which exposes the next cart. During unloading, the front pallet is removed and the carts behind it roll gently to the front. The carts and the racking are manufactured together, and the system gives drivers a large target area. The design provides up to 90% more storage capacity than standard selective racking while requiring fewer aisles and forklifts.

Features

• Increased density: fewer aisles for the same warehouse footprint
• Versatility: supports weak or non-standard pallet sizes
• Steel: 55,000 PSI high-strength steel, roll-formed or structural channel
• Carts: ship pre-assembled and welded so they stay square
• Color-coded carts: each cart depth has its own color for inventory at a glance
• Interlocking tabs: prevent jamming and keep carts moving in sync during loading and unloading
• Hold-down angle: keeps a cart from lifting if a pallet sticks to it during unloading
• Stainless steel wheels: four per cart, 2,000 lb capacity each, with debris-resistant bearings
• Pushback rails: pre-punched, with extra holes for bolt-in additions such as weak pallet supports or stops without field drilling
• Bed rails: one-piece welded construction for drop-in installation and rigidity
• Full-width angles: welded to the lane bottom to stop rail twisting and keep a tight beam fit
• Safety stops: a center stop to prevent overhang and a rear stop plate to prevent run-offs
• Powder coat finish: resists fork truck impact, solvents and corrosion

Specifications

• Lane depth: 2, 3, 4 or 5 pallets deep, or custom
• Frame construction: roll-formed or structural channel
• Capacity per cart: 2,000 lb or 3,000 lb
• Finish: powder coat
