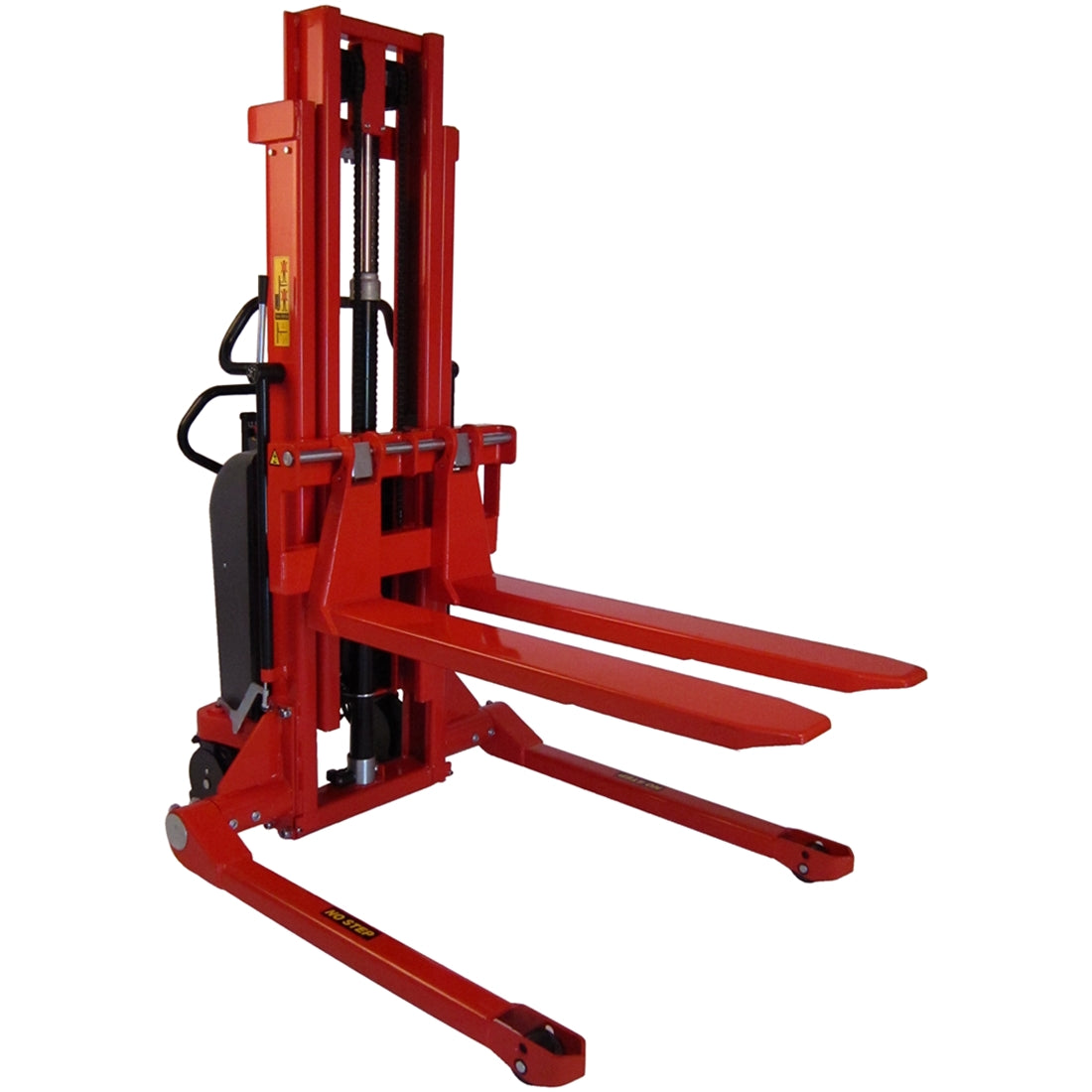

Semi-Electric Pallet Stacker

A stacker with electric lift and manual propulsion for daily lifting and stacking of heavy pallets. Push-button lifting and lowering removes the pumping effort, and assisted steering on both wheels keeps the push light. A straddle-leg version handles closed pallets.

Features

• Electric lift and lower with manual propulsion
• Assisted steering on both wheels
• Transparent safety screen, foot protectors and shielded chains
• Adjustable handle with controls on the handle
• Adjustable fork width for different load types
• Available with remote control for lifting and lowering, level control and a low speed valve
• Straddle-leg version for closed pallets and wider loads

Specifications

• Capacity: 2200 lb (1000 kg); higher-capacity version available
• Capacity limits: Load reduction at the tallest lift heights; reduced to 1650 lb with 60 in forks
• Lift and drive: Electric lift, manual propulsion
• Battery options: Maintenance-free 12V 84Ah or 70Ah, or 12V 100Ah lithium with internal charger
• Hydraulic oil: Tested in cold atmospheres down to -20 degrees C

Applications

• Daily pallet stacking in warehouses and production
• Feeding workstations at a set working height with level control

Request a quote with your load weight, pallet type, required lift height, and leg style.
