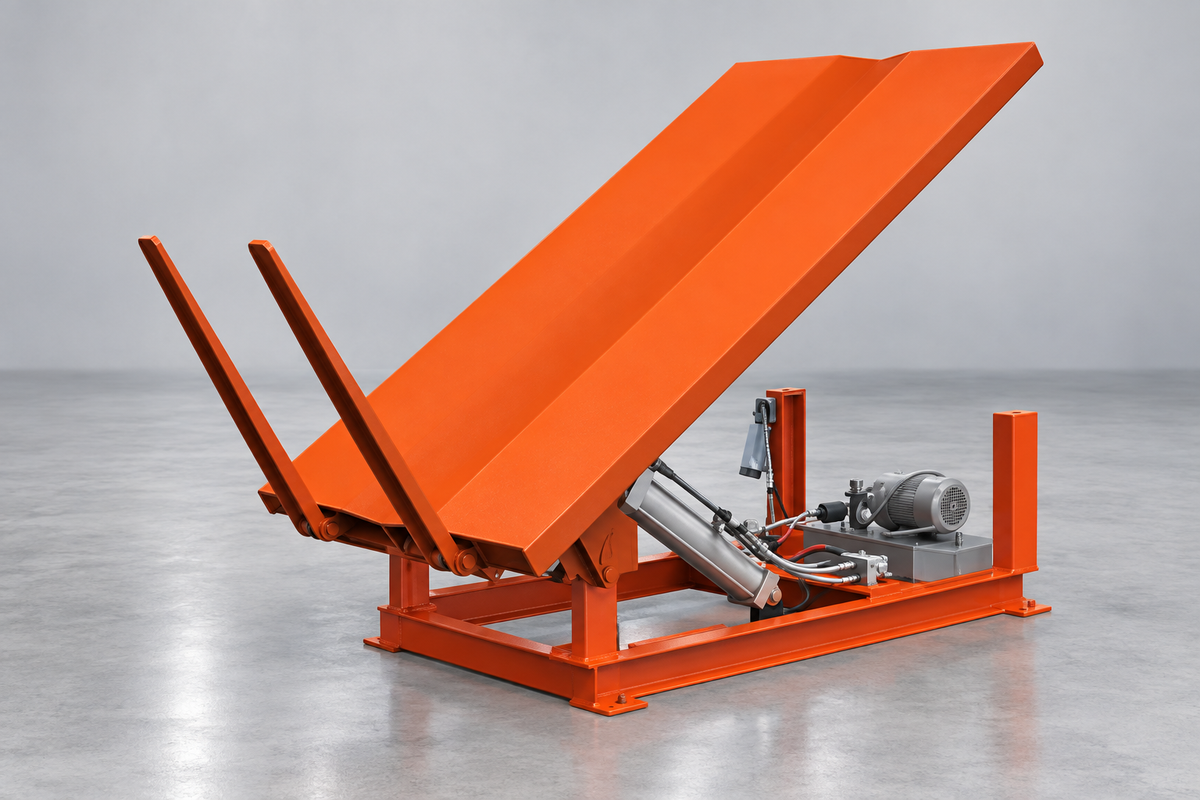

90 Degree Upenders for Rolls and Coils
Best in class pricing: request a quote for capacities, lead times, and freight on your exact configuration.
UT90 Series upenders tilt a load 90 degrees to re-orient it from horizontal to vertical. They are used to turn rolls and coils from "eye-to-the-sky" to "eye-to-horizon" quickly and without damage.
Features
- 90 degree tilt
- UT90-20 at 2,000 lbs, UT90-40 at 4,000 lbs, UT90-60 at 6,000 lbs load capacity
- 48" x 84" platform standard; platens up to 48" x 48"
- Optional forks can be specified in place of a platen
- 25" bed/low height, 5" platen height
- 460/3/60 standard voltage
Applications
- Roll and coil handling
- Re-orienting loads between processing steps
- Presenting loads vertically for the next operation
| Category | Tilter |
|---|---|
| Lead time | Quoted per order, sourced through our distributor network, confirmed at quote |
| Pricing | Quote-based: request capacities and freight for your configuration |
