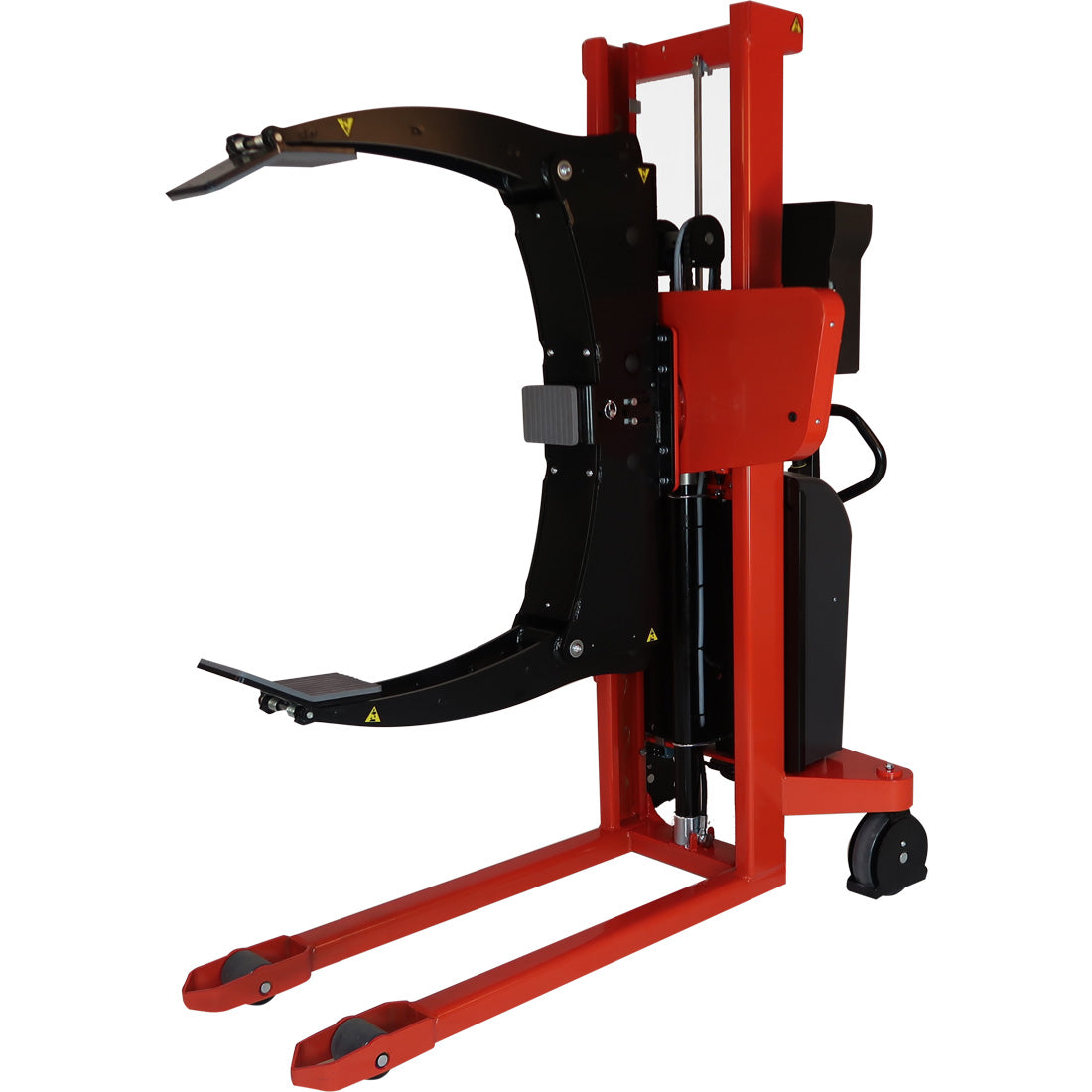

Mobile Reel Rotator
Best in class pricing: request a quote for capacities, lead times, and freight on your exact configuration.
A mobile lifter that picks heavy reels, such as paper reels, off a pallet, rotates them and places them in a packaging or printing machine without manual lifting. Rubber-padded gripping arms hold the reel and only release it once it rests on the floor or a pallet.
Features
- Grips reels in vertical or horizontal positions
- Rubber-covered gripping pads for a firm, gentle hold
- Manual, electric-lift or fully powered versions
- Manual rotation with tilt locking every 90 degrees, or programmable electric rotation
- Touchscreen controller with tilt, rotation and speed settings (electric rotation models)
- Optional remote control for clamping and rotation on electric models
- Straddle-leg versions available
Specifications
- Capacity: 1100 lb (500 kg); 700 lb on one fully powered variant
- Reel diameter range: Ø120 mm to Ø1270 mm
- Rotation: 360 degrees
- Electric rotation limit: Only above 825 mm lifting height
- Manual version tilt setting: Every 90 degrees with locking system
Applications
- Loading reels into packaging and printing machines
- Turning reels between vertical and horizontal storage
Request a quote with your reel weight, reel diameter and width, core size, and manual or powered operation.
| Category | Lifting Equipment |
|---|---|
| Lead time | Quoted per order, sourced through our distributor network, confirmed at quote |
| Pricing | Quote-based: request capacities and freight for your configuration |
