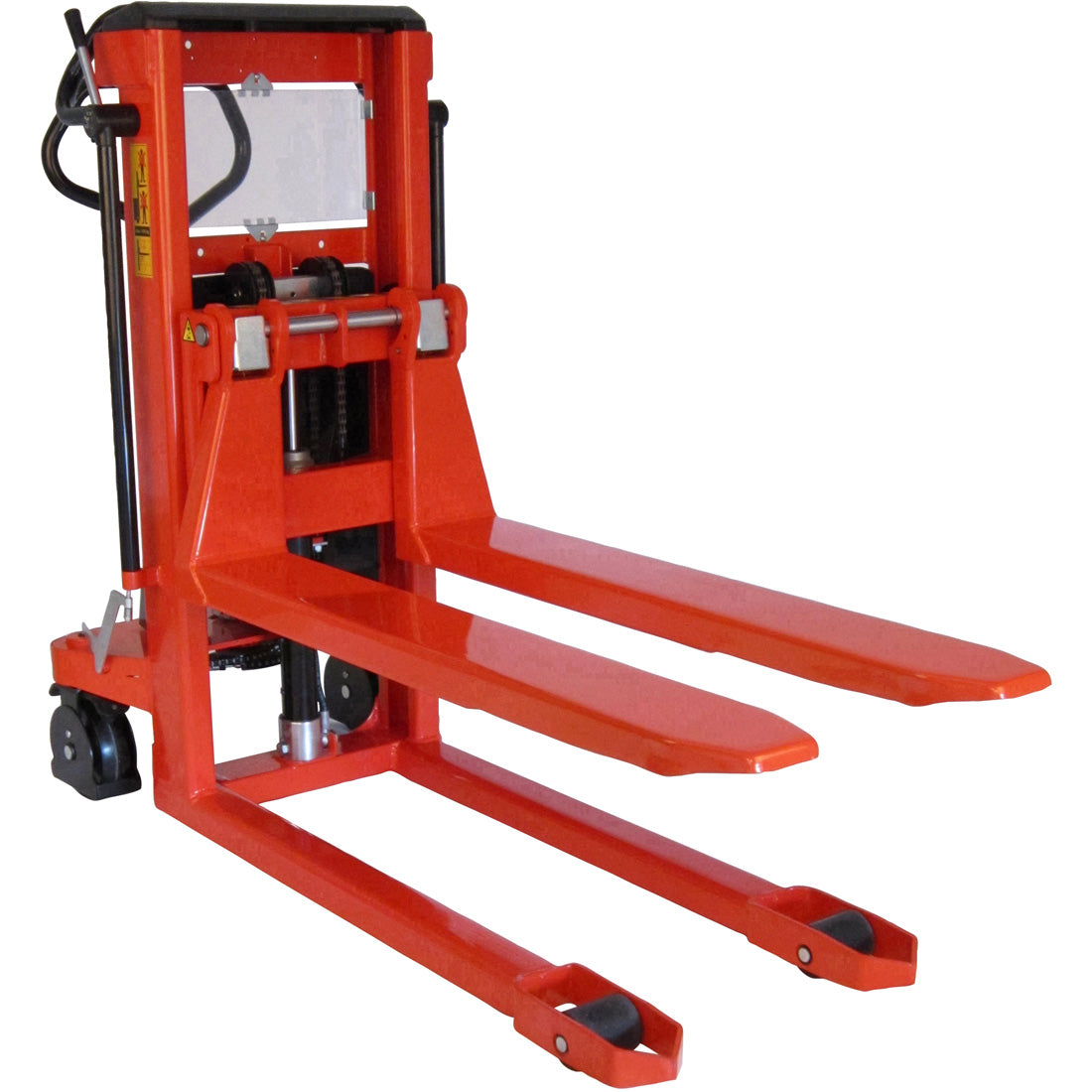

Manual Pallet Stacker

A hand-pumped, push-propelled stacker for lifting, stacking and moving pallets in tight rooms and narrow aisles. It suits lighter loads and occasional lifting, and a straddle-leg version handles closed pallets and wider loads.

Features

• Manual hydraulic pump for lifting and lowering, manual propulsion
• Compact, maneuverable chassis for confined areas
• Adjustable forks to fit different pallet sizes
• Transparent safety screen, foot protectors and shielded chains
• Ergonomic handle with individual adjustment and control buttons on the handle
• Parking brake and assisted steering on the wheels
• Straddle-leg version available for closed pallets and wide loads

Specifications

• Capacity: 2200 lb (1000 kg)
• Capacity limits: Straddle-leg version reduced to 1650 lb with 60 in forks; max. 1765 lb with more than 51.5 in between the straddle legs, where 60 in forks are not recommended
• Lift and drive: Manual pump lift, manual propulsion
• Hydraulic oil: Tested in cold atmospheres down to -20 degrees C
• Leg options: Standard legs or straddle legs

Applications

• Light or occasional pallet lifting in stockrooms and production areas
• Handling closed pallets with the straddle-leg version

Request a quote with your load weight, pallet type and size, required lift height, and whether you need straddle legs.
