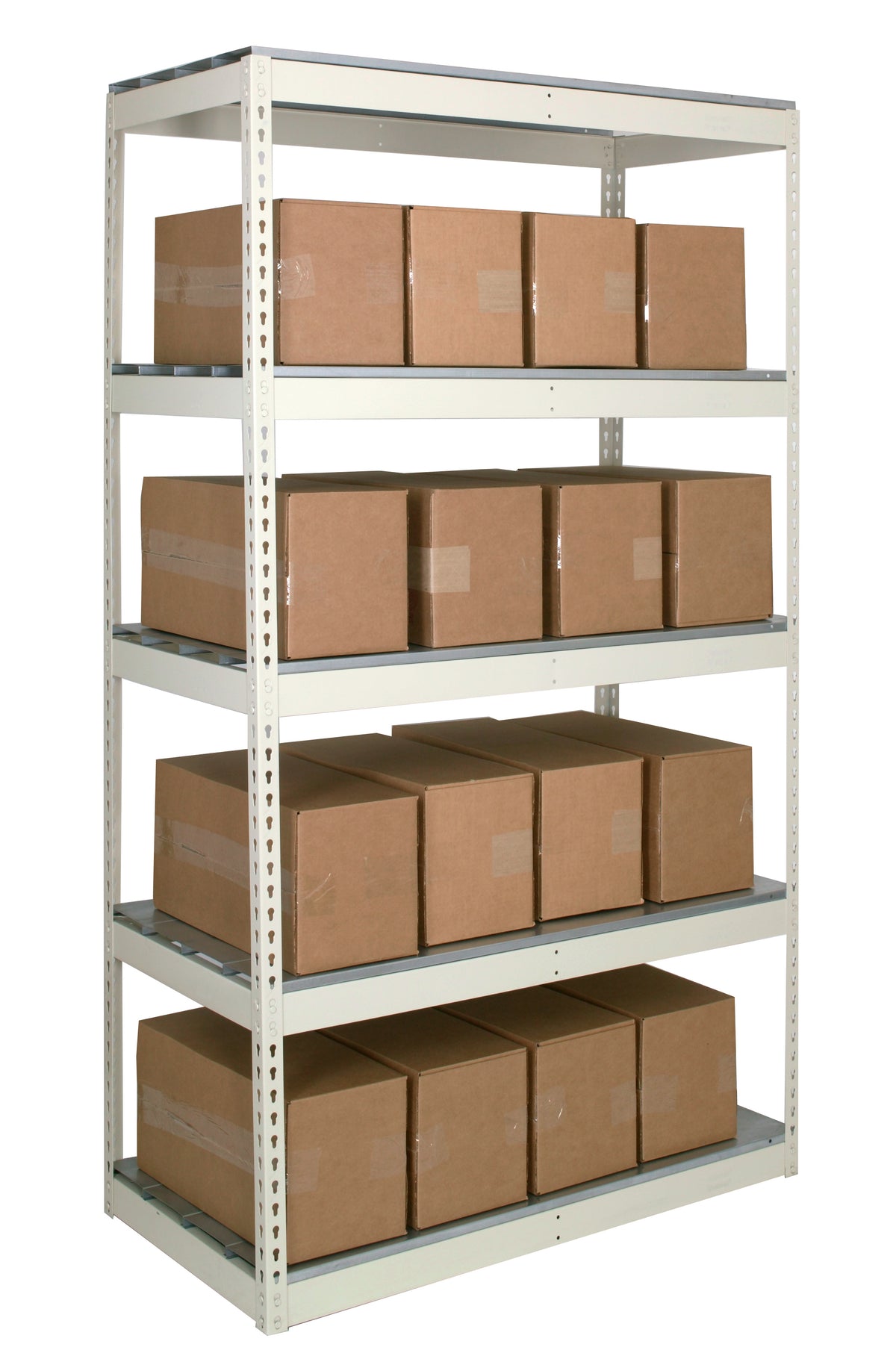

Rivetwell Double Rivet Boltless Shelving

This double rivet boltless shelving is heavy-duty bulk storage shelving for warehouses, stock rooms and shops that need a unit that goes together fast and comes apart just as easily. Posts and beams connect with rivets that drop into keyhole slots and tap tight with a rubber mallet.

Features

• Rivets align with keyhole slots in the posts and tap into place for a tight, rigid unit
• Starter units: four angle posts with left-to-right and front-to-back double rivet beams at each level

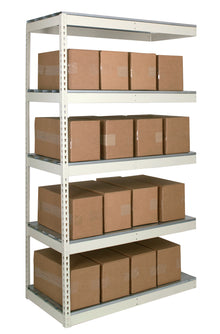

• Adder units: two T-posts that share the adjacent unit's frame, so a row grows a bay at a time; plan for unit growth when laying out a continuous row
• Available without or with center support for higher shelf capacity
• Decking options: particleboard, 22 gauge galvanized steel (EZ-Deck) or 4 gauge wire
• Shelves adjust in 1.5 in increments

Specifications

• Unit width: 48 in, 60 in or 72 in
• Shelf depth: 18 in, 24 in, 30 in, 36 in or 48 in
• Unit type: starter or adder
• Heights: 84 or 120 in
• Posts: 1-1/2 x 1-1/2 in 14 gauge (standard duty) or 1-7/8 x 1-7/8 in 14 gauge (heavy duty) cold rolled steel angle
• Example capacity: 48 x 18 in shelf, 550 lb without center support or 875 lb with center support (DRS481884-4S, DRSC481884-4S)
• Decking is ordered separately from the frame model numbers
