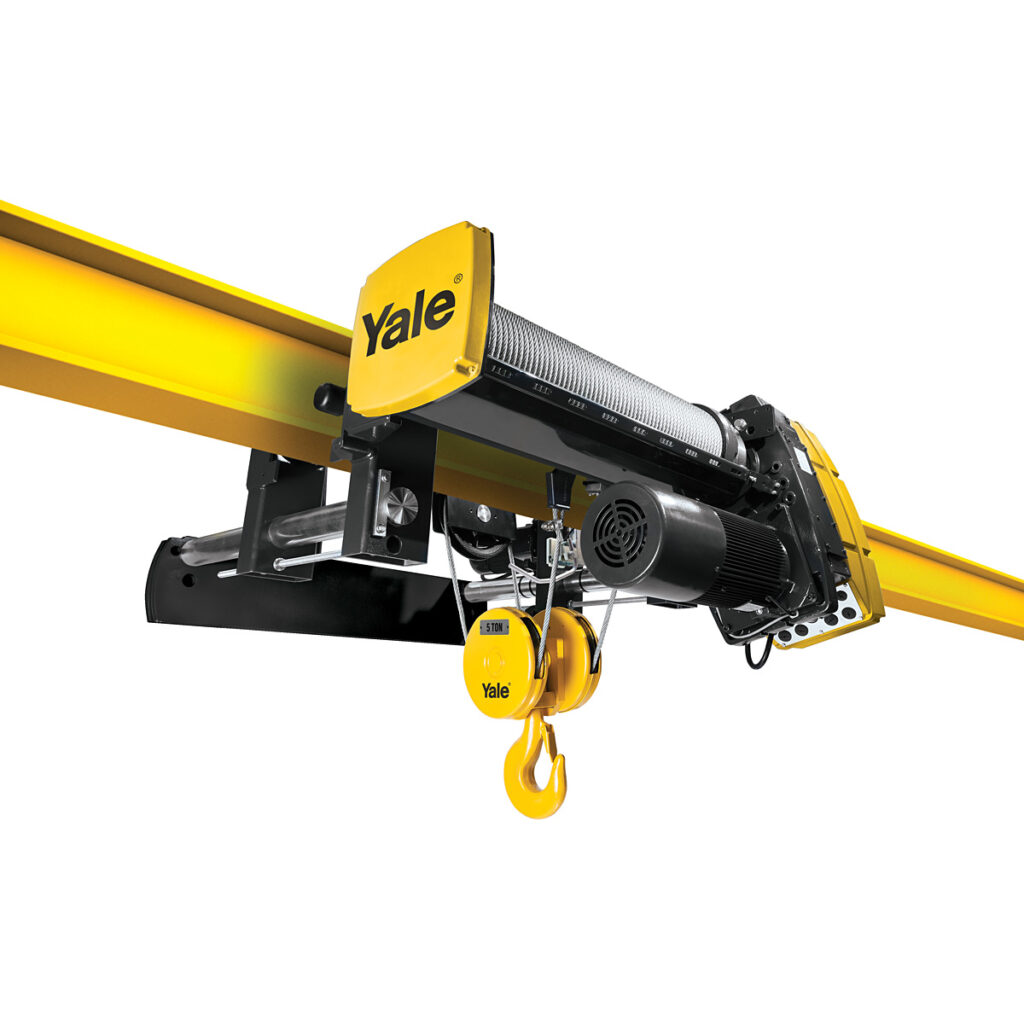

Low-Headroom Electric Hoist & Trolley, 460V

Electric wire-rope hoist supplied. Designed for lifting applications where a short approach, low headroom, and serviceable components matter. Standard 460V AC build with 2-speed hoist control and VFD trolley control, backed by a 3 year warranty.

Features

• 5 frame sizes with 16 load capacity variants
• 460V AC with 2-speed hoist control and VFD trolley control
• DC hoist and trolley brakes for fast action
• Helical hoist gearing, lubricated for life
• Paddle limit switch and adjustable geared limit switch standard
• Motor temperature control and overload protection standard
• Integrated motor management module for smooth start and brake
• Low-headroom U-shape monorail design for tight overhead clearance
• Common spare parts locally available for fast service

Applications

• General manufacturing overhead lifting
• Maintenance bays and machine shops
• Low-headroom monorail and bridge crane systems
• Warehouse and distribution overhead handling
• Explosion-protected industrial environments (per NEC, optional build)

Construction & Standards

Hoists meet CMAA and HMI standards and are CSA labeled. Explosion-protected models available in compliance with NEC guidelines. Capacities run 2, 3, 5, 7.5, and 10 tons with 20 ft or 33 ft lift options, motorized trolley suspension, H4 duty rating, and a 3 year warranty. Control pendant is not included by default and can be added at additional cost.
