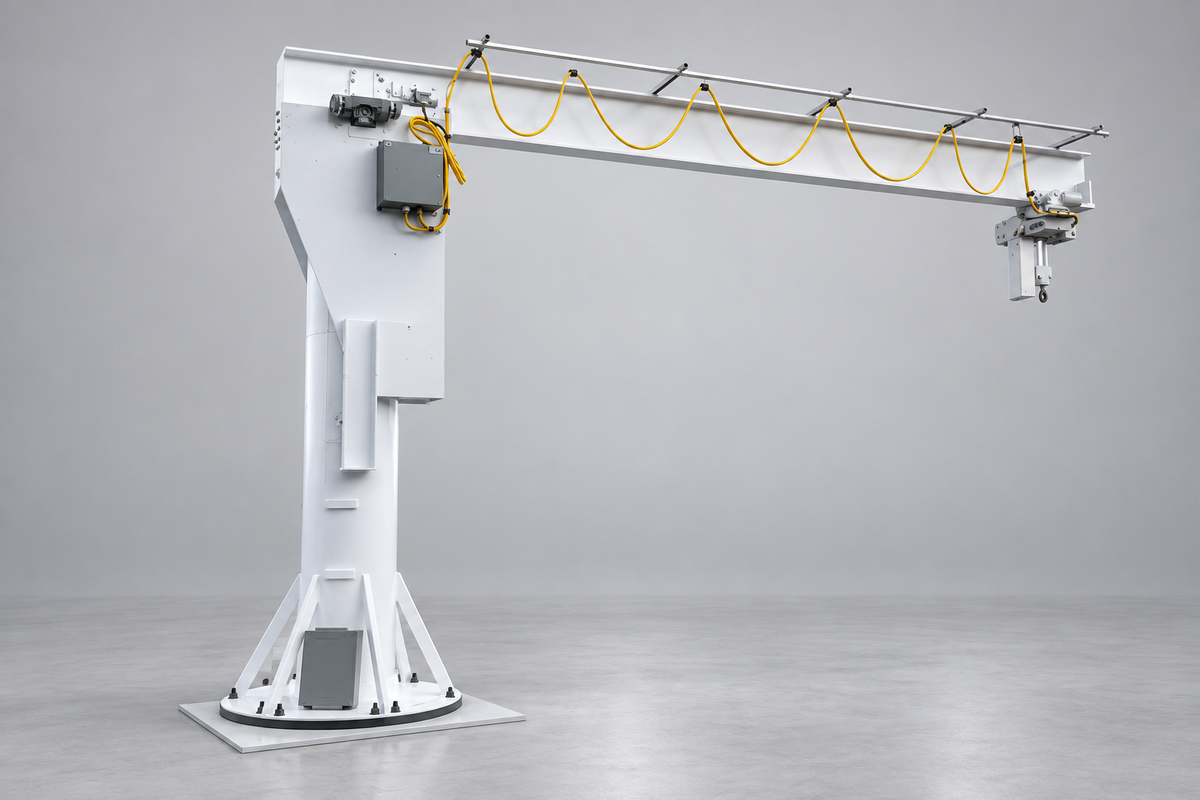

Motorized Rotation for Jib Crane Boom Swing
Best in class pricing: request a quote for capacities, lead times, and freight on your exact configuration.
Motorized rotation option for jib cranes. Replaces manual boom swing with an operator-controlled drive for safer, more precise load positioning across freestanding, wall-cantilever, wall-bracketed, and mast-type models.
Features
- Capacity: quarter ton to 5 tons standard
- Height under boom: 8 to 20 feet standard
- Rotation speed: half RPM nominal standard
- Indoor or outdoor service
- Variable Frequency Drive (VFD) for precision movement and braking
- Two-pole rotation limit switch available
- Top or bottom entry collector for 360-degree continuous rotation
- Available on J904B, J904F, J904R, J902, J900, J906FCT, and JENG
Applications
- Production and assembly cells
- Heavy load positioning
- Outdoor crane installations
- Severe duty mill applications
Construction & Standards
Drive uses a speed reducer with direct pinion-to-ring-gear engagement. Lapped steel spiral bevel pinions and gears are heat-treated and hardened to 58-62 Rockwell C. Helical-enclosed gearing drives a hardened ring gear fastened to the top of the jib mast.
| Category | Jib Cranes |
|---|---|
| Load capacity | ¼ ton – 5 tons standard |
| Lead time | Quoted per order, sourced through our distributor network, confirmed at quote |
| Pricing | Quote-based: request capacities and freight for your configuration |
